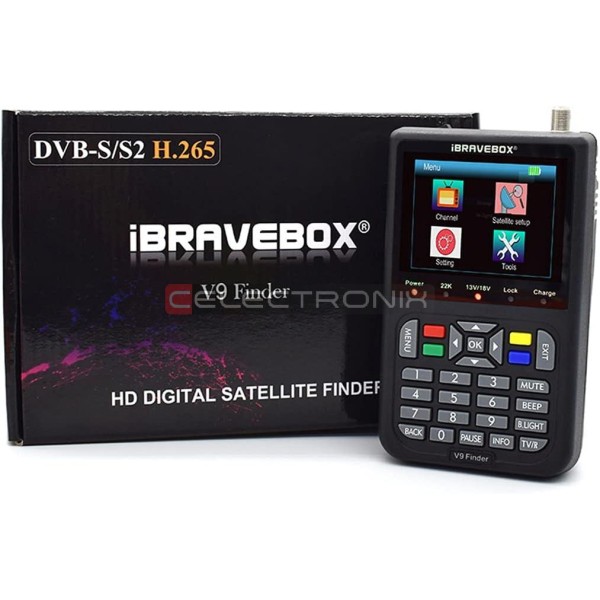

iBRAVEBOX V9Finder

I. Brief Function:

1. Fully DVB compliant ，Live FTA Digital Picture and Sound

2. 3.5 inch LCD Colour Screen,

3. Lithium-ion 3000mA Battery ，Normal work up to 4 hours，

4. Support AV in and AV/HDMI out function,

5, Support 13V / 18V / LOCK status panel LED display directly,

6, Support battery power display,

7. Software Upgradeable via USB

Note: We reserve the right to change the design and OEM/ODM supported
II. Main Features:

Product Size95*155*45 MMPackaging10 pcs/ctn

Gift Box size240*180*58MMCarton size(mm)375*310*253MM

Weight (1 set)0.5 Kg (N.W.)/0.85Kg (G.W.)

Panel display3.5 inch LCDDisplay ColorColour Screen

Output InterfaceLNB IN*1, DV OUT, AV OUT, AV IN, USB,Power supply

HDMIHDMI(up to 1080P) output


System capabilitiesFull HD DVB-S/S2 & H.265 Complian, Fully DVB compliant

Video DecodeAC-3,MPEG-2 MP@HL;H.264 BP MP&[email protected];AVS [email protected]/4.0/2.0

PAL/NTSCAutomatic PAL/NTSC conversion

Channels Number6000 channels TV and Radio programmable

Favorites8 different favorite groups selection

OSD LanguageEnglish\German\French\Portuguese\Spanish\Italian\Russian\Turkish\Polish\Arabic \Farsi\Espanol\Deutsch

OSD Color16-bit OSD with anti-flickering

Channel SearchChannel search in automatic, manual and network search

Channel EditVarious channel editing function(favorite,move,lock,skip,delete,rename,find,sort)

Easy MenuPlug and Play installation, with an easy to use Menu System

SoftUpgradeSoftware upgrade through USB

Save ChannelAutomatic save for last channel

Li-oN BatteryBattery 3000mA

Power SupplyDC12V/1500mA   (Input 100V ～240V, 50/60Hz)
IV.Electric Performance
   1.   System resource:

Flash Memory64Mb Serial Flash

DDR3 Memory1Gb DDR3
    2. LNB/Tuner input:

ConnectorF type,male

Frequency range950MHZ-2150MHZ

Input Impedance75Ω

Signal lever-65dBm~-25dBm

Active Ant Power13/18V DC @ 400mA MAX,Overload Protection

LNB switch control22KHz

DiSEqCVer 1.0/1.1/1.2
    3. Demodulator:

Front endQPSK(S);QPSK,8PSK,16APSK,32APSK(S2)

Modulation range2Mbps~45Mbps

SCPC and MCPC CapableYes

Spectral inversionAuto conversion

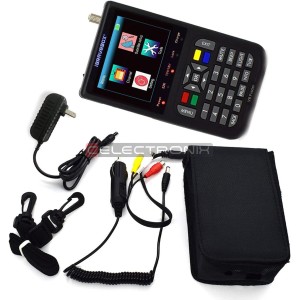

IIV.Accessories

Digital satellite meter1PCS

User'S manual1PCS

AV   cable1PCS

Car charger cable1PCS

Adaptor1PCS

Carrying bag 8.strap of carrying bag1PCS





59-08439
