Waveshare Open429I-C Package B, STM32F4 Development Board

STM32 development board designed for STM32F429I, features the STM32F429IGT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

Overview

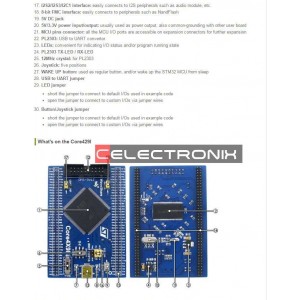

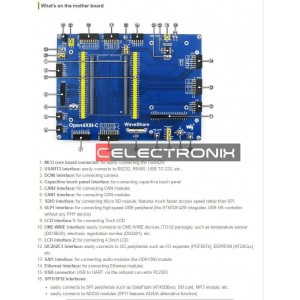

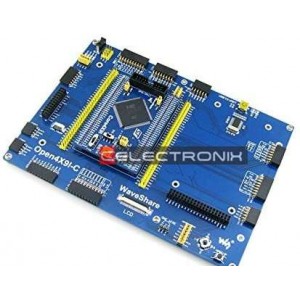

Open429I-C is an STM32 development board designed for the STM32F429IGT6 microcontroller, consists of the mother board and the MCU core board Core429I.

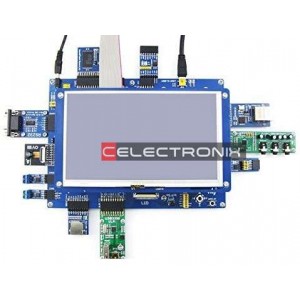

The Open429I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.

PACKAGE CONTENT

Standard Package
1.
Open429I-C development board x 1
2.
USB type A plug to mini-B plug cable x 1
3.
USB type A receptacle to mini-B plug cable x 1
4.
4-pin 2-pin wires pack x 1
5.
USB power cable x 1
6.
Software CD x 1

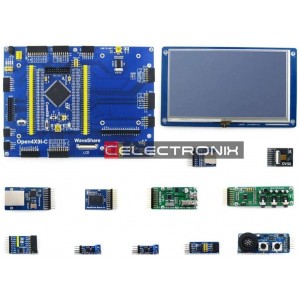

Accessory Boards Package
1.
7inch Capacitive Touch LCD x 1
2.
DP83848 Ethernet Board x 1
3.
USB3300 USB HS Board x 1
4.
NandFlash Board (A) x 1
5.
UDA1380 Board x 1
6.
Micro SD Storage Board x 1
7.
OV2640 Camera Board x 1
8.
Analog Test Board x 1
9.
FM24CLXX FRAM Board x 1
10.
AT45DBXX DataFlash Board x 1
11.
SN65HVD230 CAN Board 2pcs x 1
12.
Ethernet Cable x 1
13.
40-pin FFC 0.5 200mm (opposite sides contact) x 1
14.
4-pin FFC × 1
15.
7inch LCD screws pack x 1
