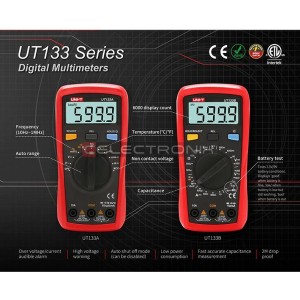

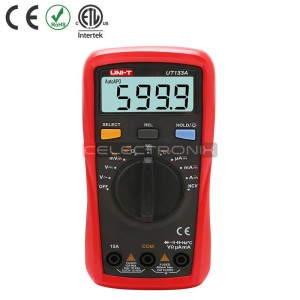

UT133A, Multimètre numérique de poche UNI-T Automatique 600V

Specifications                                   Range                                     UT133A

DC voltage (V)         600mV/6000mV/60V/600                      ±(0.5%＋3)

AC voltage (V)                          600V                                         ±(0.7%+3)

DC current (A)          600uA/60mA/600mA/10A                        ±(1%+3)

AC current (A)                           10A                                         ±(1.2%+3)

Resistance (Ω) 600Ω/6000Ω/60kΩ/600kΩ/60MΩ                    ±(0.8%+2)

Capacitance (F) 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF ±(4%+5)

Frequency (Hz)                10.00Hz~1.000MHz                         ±(0.1%+5)

Temperature (℃)                     ‒40℃~1000℃                         ±(1%+4)

Temperature (℉)                      ‒40℉~1832℉                                  ±(1.5%+5)

Features

Display count 　 6000

Range selection 　 Auto

Diode 　 √

Continuity buzzer 　 √

NCV 　 √

LCD backlight 　 √

Test probe holder 　 √

Data hold 　 √

Low battery indication 　 √

Overload indication 　 √

General Characteristics

Power 1.5V battery (R03) x 2

Display 56.8mm x 36.1mm

Product color Red and grey

Product net weight 255g (with batteries)

Product size 155mm x 76.5mm x 49mm

Standard accessories Manual, test leads, K-type thermocouple

Standard individual packing Gift box, English manual
