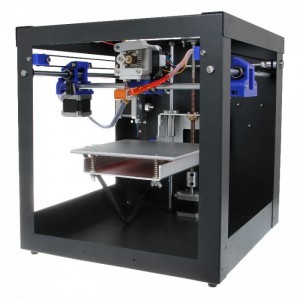

MeCreator 2 is our new desktop 3D  printer with half-opened and box-type design and 160x160x160mm building volume.  It is optimized and improved based on the previous MeCreator, bringing MeCreator  2 with more exciting features.

The control board and power supply unit  are hidden in the bottom of the printer, compact and space efficient, providing  stable support for printing as well as protection for you. The upgraded hardware  and optimized firmware bring you excellent printing effect. The printing  precision is up to 0.05mm, and the positioning precision is up to 0.05mm for X/Y  axis and 0.02mm for Z axis. Regarding to the printing material, MeCreator 2  supports various filaments including ABS, PLA, flexible PLA and wood-polymer. In  addition, MeCreator 2 is equipped with LCD2004 controller, which enables  stand-alone printing with SD card.

Like MeCreator, MeCreator 2 will be  delivered after assembly as well, which   saves you from  the trouble of assembling. Get a MeCreator 2 now, and welcome to  the wonderful world of 3D printing!

Features:

1. Safe, stable and  space-efficient

High-quality steel chasis  makes the printer firm and durable, as well as attractive in appearance. The  main board and power supply unit are installed in the bottom of the printer,  safe and space efficient. And this structure lowers the gravity center of the  printer, providing stable support for printing. The half-opened design of the  printer provides you with enough protection, as well as various perspectives to  observe the printing process.



2. High-performance control board

The  control board is our self-developed  GT2560B 3D printer control board which is powered by  ATmega2560. With its 256KB Flash Memory and 16MHz operating frequency,  GT2560B provides endless power for MeCreator 2 to  achieve high-performance printing effect.

3. Excellent MK8  extruder

 MeCreator 2 comes with upgraded MK8  extruder whose feeding device uses double “V” design which can ensure stable and  constant feeding. The heat-resisting PTFE tube inside the barrel ensures fluent  feeding and helps avoid blocking problem thanks to its  self-lubricity. The precise brass nozzle ensures  accurate extrusion, realizing excellent printing effect.

4. Higher transmission  accuracy of Z-axis

Z-axis adopts high-precision lead screw  which is able to convert rotary motion to linear motion. The lead screw features  high accuracy, reversibility and high efficiency. It can achieve accurate  micro-feeding to ensure printing precision, and high-speed feeding to ensure  fast printing speed.

5. Better adherence with heat bed

The printing platform is made up of  high-quality aluminum alloy plate and superior heat bed, which can be heated up  to 110℃, ensuring better adherence of filament, preventing the first layer from  warping, providing better printing quality.

6. Various filaments  supported

The upgraded hardware and optimized  firmware allowzhex MeCreator 2 to support various  filaments including ABS, PLA, flexible PLA and wood-polymer filament. Giving you  a wide range of choices for your different printing needs.

7. Larger printing  volume

Compared with the 150x150x125mm printing  volume of Mecreator, the building area of Mecreator 2  is increased to 160x160x160mm. You can print more kinds of models  of larger volume.

8. Supporting various 3D printer  software

MeCreator 2  supports most kinds of popular 3D printer control software including Repetier  Host, Printrun and 3D Simplify, and it supports  slicing software like Cura and Slic3r, whose intuitive UI design and simple  operation bring you good user experience. You can easily use the printer well  even you are a starter.

9. Supporting stand-alone printing with SD card

MeCreator 2 adopts LCD2004 controller,  on which the detailed printing status are clearly presented on the screen. In  addition, there is an SD card slot for LCD, with an SD card, MeCreator 2 can  easily realize stand-alone printing. This allows you to print without connecting  your MeCreator 2 to computer and helps you avoid possible printing interruption  problem caused by the breakdown of computer system.

10. Built-in LED  light

Inside the printer there is a LED strip,  which gives out blue light, bringing you a clear view of the model being printed  even under insufficient lighting. What’ more exciting, you can control the LED  light intensity by sending different code commands to satisfy your different  needs.

11. A  wide range of  application

3D printing technology can be applied to  a wide range of fields including industrial manufacturing, designing, machine  part manufacturing, modeling, building, arts and culture field, teaching,  archaeology, toys producing and so on. Unleash your creativity and 3D printing  will bring you endless surprises.

12. Save you from trouble of assembly

MeCreator 2 is assembled and tested by  us before shipping. You can start printing right out of the box. Compared with  DIY 3D printer, MeCreator 2 saves you from troubles of assembling. MeCreator 2  is highly recommended to both starters and experienced users.

For more details, please view at Wiki.

Share your amazing printing works onm  mecreator 2 google  plus community.


















For  more Videos about MeCreator2, please visit our Youtube.

Printing  specifications:

Print technology:  FDM

Build volume: 160x160x160mm

Printing precision0.05mm

Positioning precision: X/Y0.05mm. Z0.02mm

Print Speed: 60-80mm/s

Filament diameter: 1.75mm

Nozzle diameter: 0.4mm

Filament type: ABS/PLA/flexible  PLA/wood-polymer



Software:

Operating system:  Windows/Mac/Linux

Control software:Easy Print, Repetier-Host, Printrun,  Cura

File format: .STL, 3ds, obj, amf, dae,  G-code



Temperature:

Max heated bed temperature:   About 110 °C

Max extruder temperature:  About 240°C

Electrical:

Power supply:

Input: 110V-220V 360W

OutputDC24V/15A

Connectivity: USB, SD card (support  stand-alone printing)

 Mechanical:

Chasis: metal sheet

Build Platform:  Aluminum alloy plate+ heatbed

XYZ Rods: Wear-resistant, stainless  steel and lead screw(Z axis)

Stepper Motors: 1.8°step angle with 1/16  micro-stepping

Physical structure: Reprap

Physical Dimensions &  Weight

Machine Dimension: 320x320x360  mm

Shipping box Dimension:  460x460x410mm

Machine Net weight: 9.05kg



Machine Shipping weight:  17.5kg

1 X MeCreator2

1x filament holder set

1x tape

1x tool set

 3m starter filament
