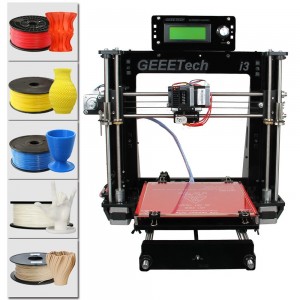

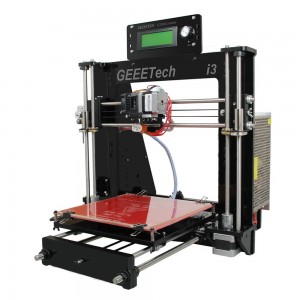

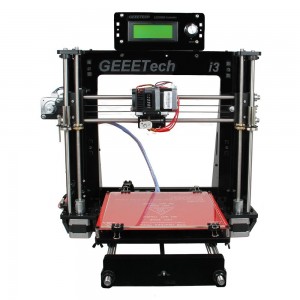

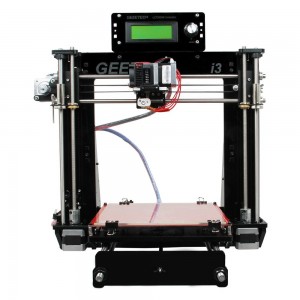

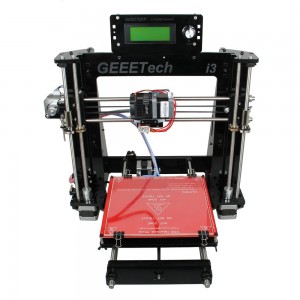

Imprimante 3D Prusa I3 pro B Acrylique en kit DIY GEEETECH

Référence: 59-03789

1 355,000 TND
TTC
Quantité
False



Garanties sécurité



Livraison gratuite à partir de 300dt



Ouvert tous les jours de 8:30h à 18h

Introduction:

This Geeetech I3 pro B 3D printer is designed and manufactured by Shenzhen Getech Co., Ltd based on Geeetech I3 pro, except its simple assembly, easy debugging and more stable performance, compared with the I3 pro, I3 pro B features a newly added potential for 3D printing—support 5 types of filament: ABS, PLA, Wood-Polymer, Nylon and flexible PLA., create flexible hinges, joints, shaped parts; enable you to get the most out of your 3D Printer.

 Features:

1.Multiple filaments compatible: ABS/PLA/Flexible/PLA/Nylon/Wood-Polymer, making 3D printing creativity more flexible.

2.New GT2560 control system, a perfect combination of Mega2560+Ramps1.4.

3.Further simplified structure means fast assembly and easy adjustment, which saves you both time and energy

4.Enhanced stability and reliability: 8- mm-thick acrylic plates and all metal carriages ensures more stable printing.

5.Paired with LCD 2004 panel & SD card reader ,support stand-alone printing.

Note that the firmware is pre-installed, if you need to do modifications, please download firmware here















For detailed building instructions, please watch the video on youtube.



Printing specifications:

Print technology: FFF/FDM

Build volume: 200 x200x180mm

Layer resolution: 0.1-0.3mm

Positioning Precision: 0.1-0.3mm

Filament diameter: 1.75mm, 3mm

Nozzle diameter: 0.3mm, 0.35mm, 0.4 mm, 0.5mm

Filament type: ABS/ PLA/Flexible PLA/ Wood /Nylon



Software:

Operating system: Windows/Mac/Linux

Control software: Easy Print,Repetier-Host, Printrun

File format: .STL. G-code



Temperature:

Max heated bed temperature:  about 110°C

Max extruder temperature:  about 240°C



Electrical:

Power supply:

Input: 110V/1.5A  220V/0.75A

Output:DC12V/15A

Connectivity: USB, SD card (support off-line printing)



Mechanical:

Body: Acrylic plate of 8 mm thickness (black/ transparent)

Build Platform: Borosilicate glass + MK2A heatbed

XYZ Rods: Wear-resistant, stainless steel

Stepper Motors: 1.8° step angle with 1/16 micro-stepping

Physical structure: Reprap



Physical dimensions:

Without spool: 45 x 44 x 44 cm

With spool: 45 x 44 x 68 cm

Shipping box: 53 x 46x 18 cm

Net weight: 8. 5 kg

shipping weight :10.00KG

1 x geeetech I3 pro B DIY kit

1 x hand tool set (free add-on)
